Technical Deep-Dive: Power, Voltage, and Dimensions

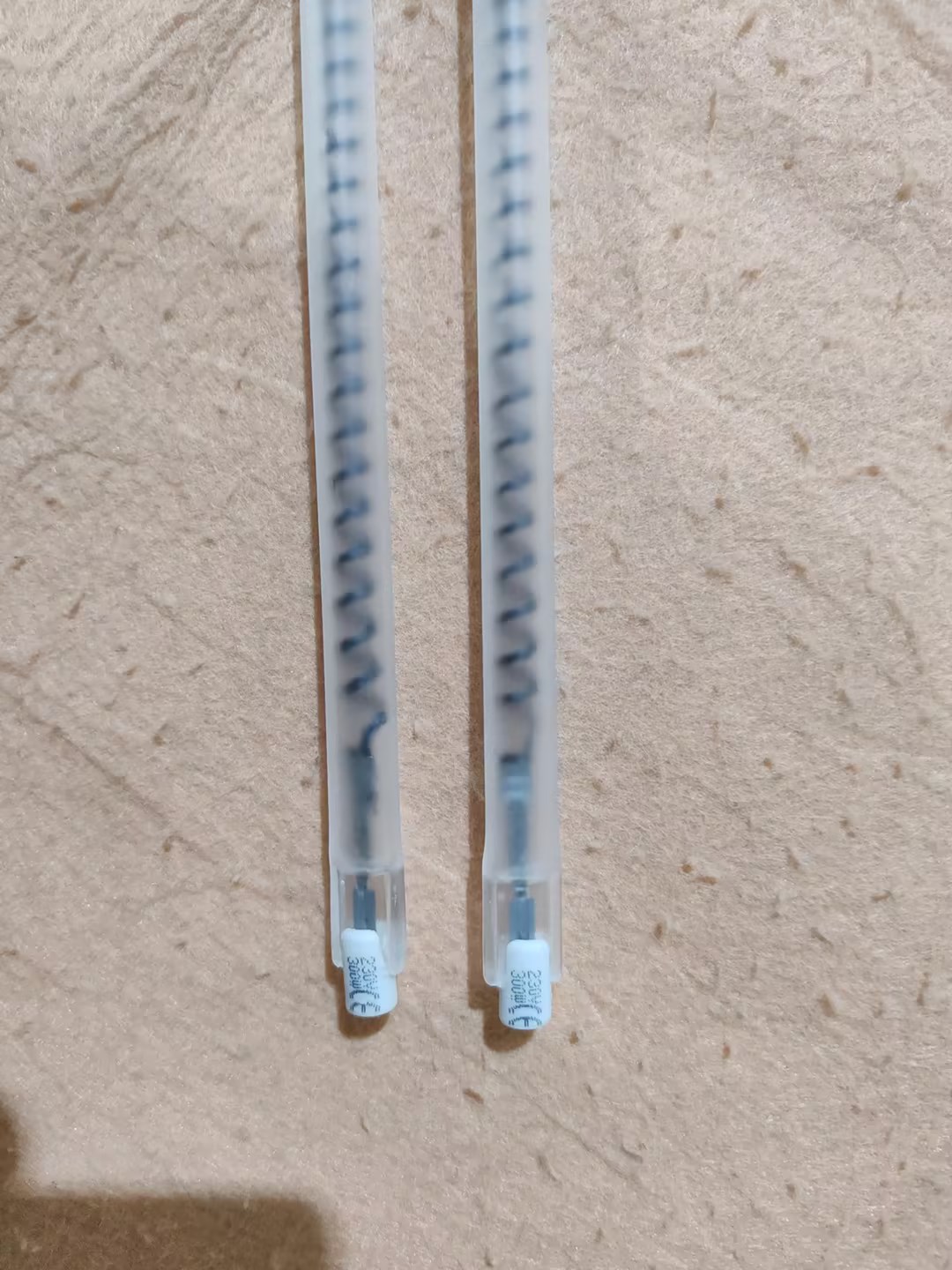

When we design these carbon fiber heating tubes, we’re thinking about industrial machines that need heat, and need it fast. We spec them for 400V, and that’s for a reason. It lets them pack a serious punch—up to 2500W—into just a 300mm length. What you get is a ton of heat in a tiny space. It’s the kind of power that lets you zero in on a small area without having to build a giant system just to make it happen. And that 300mm length? It’s the sweet spot. Long enough to do the job, but short enough to slip into those snug chambers and tight tooling.
Material & Design: Halogen, Quartz, and Connectors
Inside, the carbon fiber element is sealed up in a quartz tube, packed with halogen gas. This isn’t just for show. It keeps the filament stable and stops those nasty hot spots from forming. The payoff? The tube can handle being switched on and off a million times without just giving up and burning out. That quartz coating is also smart. It’s made to let infrared energy pass right through, aiming the heat where you need it—on the work surface. Not wasted on heating the machine frame. Then there’s the R7s connector. It’s a simple, two-pin setup that’s a breeze to wire up. It snaps in and holds tight, built to take the constant vibration of a busy shop floor without losing its grip.
Application & Benefits: Tough Heat, Tight Spaces
These tubes are the go-to when you need heat that’s both fast and focused. You’ll find them in places like plastic processing, curing stations, and packaging sealing. The beauty is the balance. You get a heater that’s small enough to fit, but powerful enough to hit those target temperatures in a flash. Now, there is one thing to keep in mind. That intense heat density means the machine around it has to be smart about cooling and airflow. But if you’ve got that handled, you’re rewarded with a heater that’s tough, easy to install, and just keeps on performing, no matter how many times it cycles.
